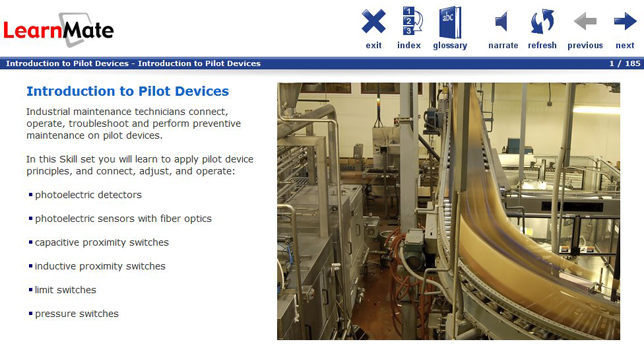

Pilot Devices (EA09) delivers hands-on skills in installing, operating and troubleshooting pilot devices used in electric control circuits. Pilot Devices (EA09) is an add-on to Electromagnetic Motor Starters (EA07), covering ten additional skills including connecting and operating photoelectric sensors with fiber optics, capacitive and inductive proximity switches, limit switches, pressure switches, liquid level switches, and magnetic reed switches.

The skills-based curriculum presents hands-on activities using industrial-grade components mounted on the four included Flexponent® panels which attach to the JobMaster® Learning Station (not included). Panels are easily added and exchanged allowing the workspace to be re-configured as multiple students progress through the course.


Order #16-EA09:

Pilot Devices (EA09) E-Learning Course and Teachers’ Guide
Flexponent® panels:
E011: Limit Switch Panel
E018: Liquid Level and Pressure Switch Panel
E126: Proximity and Photoelectric Switch Panel
E153: AC/DC Circuit Panel

(sold separately)

JobMaster® Learning Station Order #10-LS00-0200
Power Control Panel (220V) 3-Phase Order #10-PC06-0000
* International step-down transformer package (Order #10-PC09-0000) required for international applications.
Digital Multimeter (Fluke Model 115 or equivalent)
Prerequisite Courses
Electromagnetic Motor Starters (EA07) Order #14-EA07

Skills Acquired

Skill 1: Connecting and Operating a Photoelectric Detector
Skill 2: Connecting and Operating a Photoelectric Sensor with Fiber Optics
Skill 3: Connecting and Operating a Capacitive Proximity Switch
Skill 4: Connecting and Operating an Inductive Proximity Switch
Skill 5: Connecting and Operating a Limit Switch
Skill 6: Connecting and Operating a Pressure Switch
Skill 7: Connecting and Operating a Liquid Level Switch
Skill 7: Connecting and Operating a Magnetic Reed Switch
Skill 9: Troubleshooting Pilot Devices
Skill 10: Performing Preventive Maintenance
