Upgrade to CIM system with new components and capabilities.
Previous
Next
See more customers:
Menu
CUSTOMER:
CITY:
COUNTRY:
Galatarasay University
Maluku
Europe, Turkey
REGION:
INSTALLATION:
TYPE:
Europe
Nov 2017

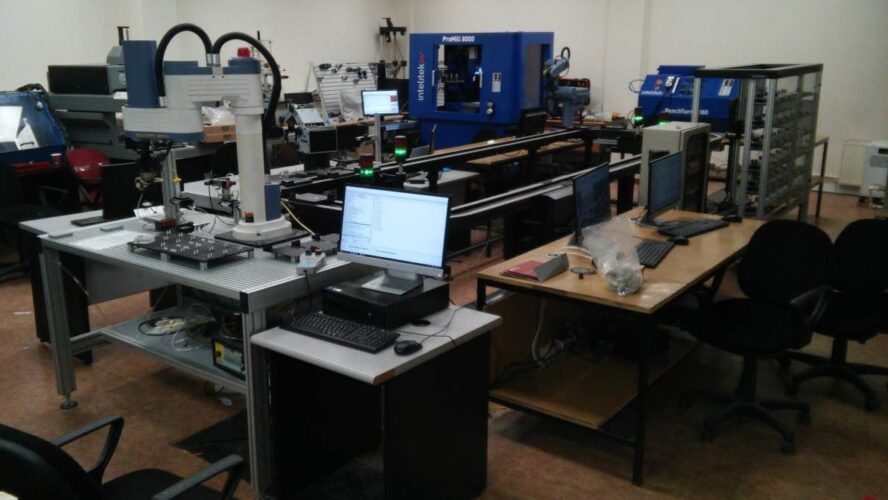

4 Station CIM – Upgrade to CIM
| Station | Type of Station | Equipment and Devices at Station |
|---|---|---|
| Station 1 | ASRS | ● ASRS-36 (36 storage cells) with RFID Reader |
| Station 2 | FMS | ● SCORBOT - ER 9 on linear slidebase ● CNC Milling machine (ProMill 8000) ● CNC Turning machine (BenchTurn 7000) ● Local storage |

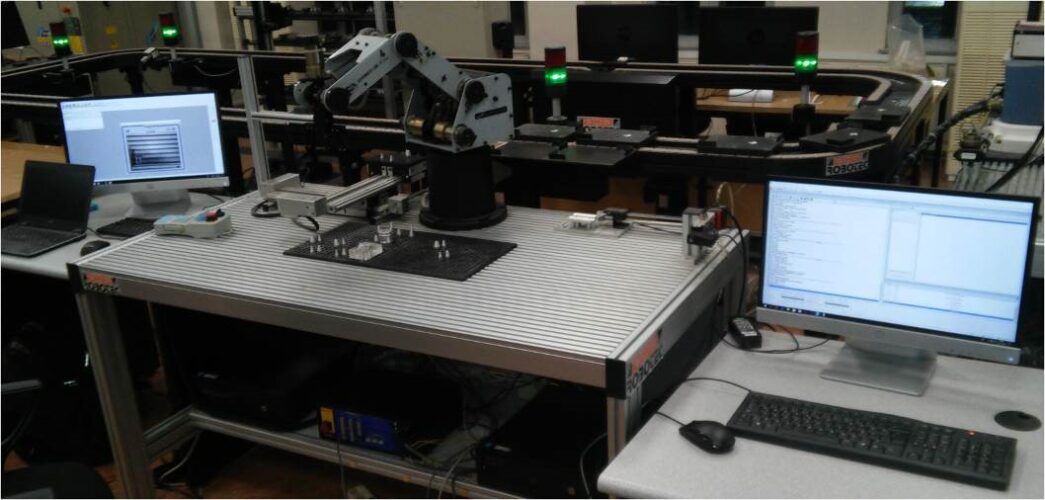

| Station 3 | Quality Control and Assembly | ● SCORBOT – ER4u ● Machine vision system ● Automatic Caliper ● XY positioning table ● Local storage |

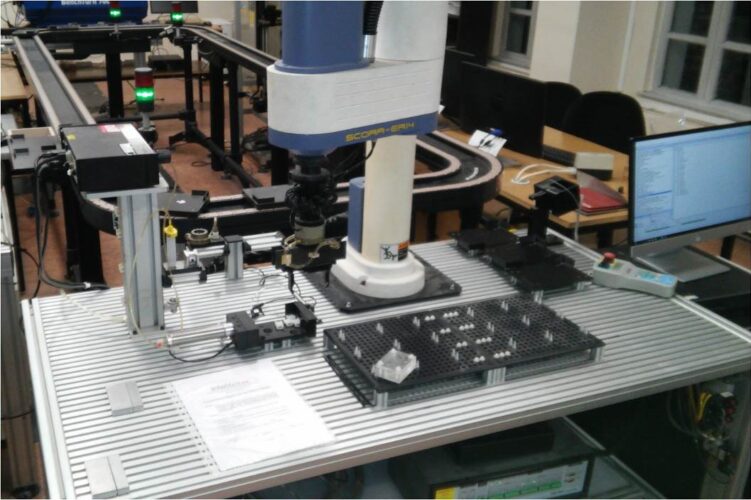

| Station 4 | Assembly and Quality Control | ● SCORA-ER 14 robot ● Automatic Toolchanger ● Ball feeder ● Automatic Glueing System ● Pneumatic Vice ● Local Storage |
| Conveyor | ● Loop conveyor, approx. 11 m total (4200mm x 1400mm) ● 4 station stop units and indicator lights ● OMRON PLC control unit ● Pallet tracking system | |
| Additional Components | Central CIM management station with OpenCIM software |
