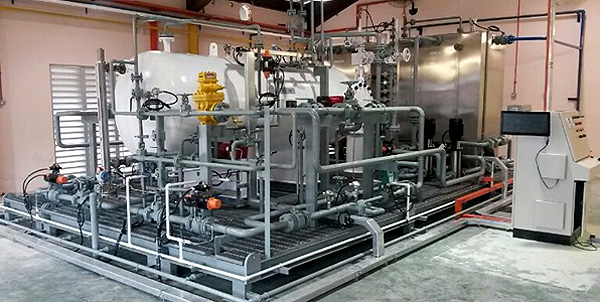

PHOTO OF ACTUAL SYSTEM INSTALLED AT CUSTOMER’S SITE

Three Phase Separator General Description

The Three Phase Separator with Wellhead Control training process pilot plant is a scaled-down process pilot system that allows trainees to explore the Operational and Maintenance (O&M) of oil production equipment.

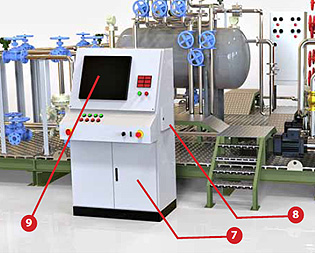

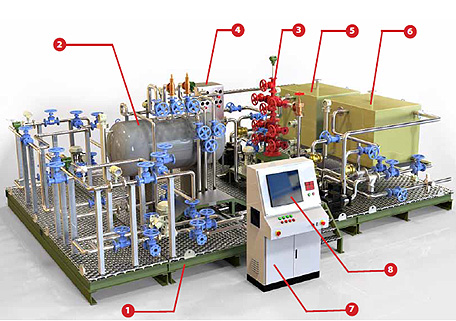

The Three Phase Separator is comprised of the following major equipment modules:

  1. Process Skid Platform
  2. Three Phase Separator
  3. Wellhead and Christmas Tree
  4. Wellhead Control Panel (WHCP)
  5. Water Storage Tank
  6. Oil Storage Tank
  7. Local Control Panel (LCP)
  8. Fault Simulation Module (FSM)
  9. Local Control System and SCADA System
